Mining Specific Relays from Foxtam Controls

The partnership between Leveltec and Foxtam Controls delivers a range of purpose-built mining relays designed for underground and surface operations, including pump starters, fan starters, flameproof motor control, and hire power distribution systems.

At the core of this range is the Foxtam ANZ ELR Earth Leakage Mining Relay — the only AS/NZS 2081 compliant earth leakage mining relay on the market.

Designed specifically for Australian and New Zealand mine and quarry environments, the ANZ ELR relay provides proven, fail-safe electrical protection that operators can rely on.

Unlike generic industrial relays, the Foxtam ANZ ELR is engineered to meet AS/NZS 2081:2011 requirements under all current and time settings. It operates safely under reduced auxiliary voltage and automatically shuts down on toroid removal or voltage loss, ensuring compliance, reliability, and personnel safety in high-risk applications.

These DIN-mounted relays are compact, robust, and easy to retrofit into existing installations, making them ideal for both new builds and legacy upgrades. Their fail-safe design and simplified calibration reduce maintenance downtime while ensuring continuous protection in harsh environments.

Optional IP66 lockable panel-mount kits and accessories make upgrades and installations simple, while Leveltec’s in-house engineering and manufacturing support enable customisation for unique site requirements, including custom brackets, auxiliary components, and retrofit kits for older systems.

Additional Protection Solutions

Leveltec also supplies the Foxtam ANZPFR Phase Failure Relay and ANZPFC Phase Reversal Relay, both rated to 1200VAC. These models are purpose-built from Foxtam’s proven European designs, originally developed for heavy-duty applications in British Rail systems, ensuring long-term reliability in Australian mining and tunnelling operations.

Together, these relays form a complete electrical protection suite designed for the most demanding mining environments, from underground haulage systems to surface motor-start applications.

Foxtam Mining Specific Relays

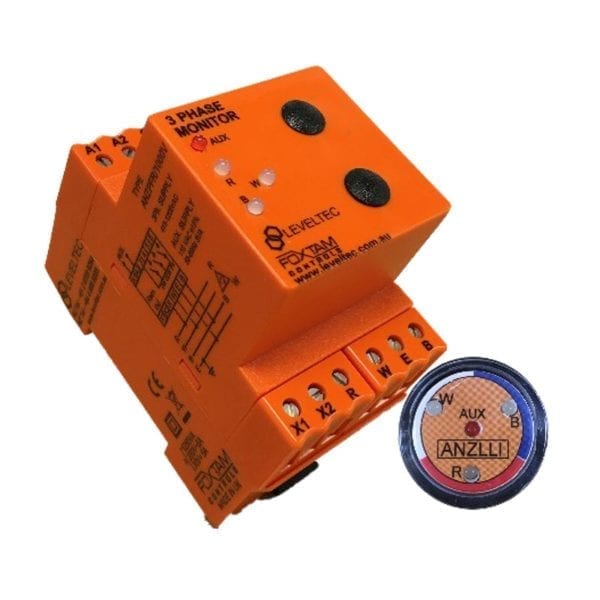

Mining 3 Phase Monitor ANZPFR

A DIN rail-mounted three-phase monitor with clockwise and counter-clockwise phase rotation discrimination via separate contact outputs (“CW” and “CCW”). Includes front LED indication and optional external indicator connection.

Data Sheet Enquire now

Mining Earth Leakage Monitor ANZ ELR

A DIN rail-mounted current-sensing relay for earth leakage monitoring in conjunction with a core balance CT. Purpose-designed to meet AS/NZS 2081:2011 requirements, it is the only compliant earth leakage relay available on the market, providing fail-safe protection and full compliance for mining and quarrying operations.

Data Sheet Enquire now
