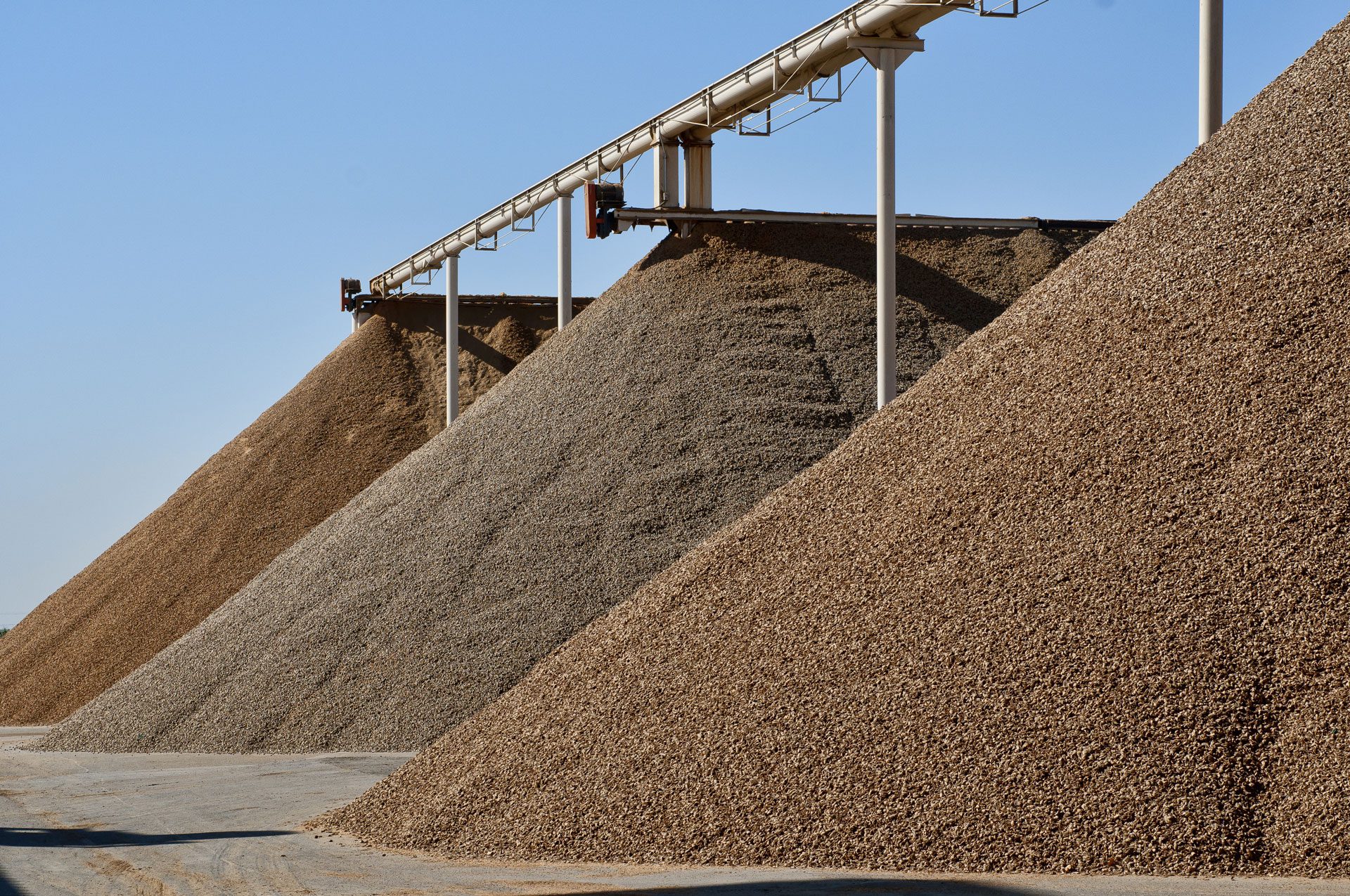

Bright Light Agribusiness(BLA), one of the fastest growing private companies in the Australian almond industry required a solution for point level control. The Hattah Almond Plant is a new facility with an annual throughput of 25.000 metric tons/year and will have its own hulling and shelling, inshell-pack-out capabilities and will also be equipped to deliver a ‘pack-to-grade’ brown kernel raw-almonds product.

Objective

The client required a non-mercury tilt switch solution for use with almond stockpiles and conveyors. The tilt switch needed to be light weight and have a large enough surface area not to burry. As the switches where intended for use in automated processing lines, a stable output was also desirable to remove the need for addition signal conditioning equipment. The delivery time was also a factor in their purchasing process as the solution had a specific onsite date.

Float Ball Tilt Switch
Leveltec Float Tiltswitch

Solution

BLA found Leveltec via our webpage and pre-selected the model tilt switch they wanted using our easy to navigate tilt switch page. Submitting a request for quote online we provided a timely quote for the project and confirmed we could manufacture immediately to meet their onsite delivery date. As the selection was already made and approved by the customer using the data sheet the LP02’S went straight into production!

Technical Details

LP02 Tilt Switch

  • Snap action non mercury tilt switch with changeover contact
  • Inbuilt hydraulic dampening system to reduce nuisance tripping and provide smooth input to the PLC
  • Light weight construction PVC body fitted with a Float ball option to create greater surface area and reduce the event of burying
  • Build with long installation in mind! – The LP02’s included our steel wire braided cable options for increase service life.
  • Hanger Kit with quick links made installation to conduit pipe easy and make the pivot point easy to calculate for final level.
Leveltec Floating Tilt Switch
Leveltec Tilt Switch A2 Poster

Conclusion

The Project was successfully delivered on time and resulted in further purchase at a later date! The customer was very satisfied that there was an Australian made solution that could be delivered for this project.
