Terminal Blocks, Busbars & Switchgear Accessories
In demanding industrial environments, electrical connections need to be safe, repeatable, and easy to install — first time, every time.
Leveltec is the Australian distributor for Morek, a European manufacturer of electrical connection components trusted by engineers across the mining, rail, shipping, and broader industrial sectors. From terminal blocks and distribution connectors to busbars and switchgear accessories, the Morek range is engineered for harsh-environment performance: tested for short-circuit withstand, certified to international standards, and built to handle the vibration, dust, and load demands of heavy industry.
For electrical engineers specifying connection systems, that means fewer compromises, products rated for both copper and aluminium conductors, Class A short-circuit certification where it matters, and a catalogue broad enough to cover an entire switchboard build from a single supplier.
Through Leveltec, the full Morek range is available across Australia and New Zealand, backed by local stock, engineering advice, and site-ready support.
Applications
- Switchgear and control panels
- Mining and bulk materials handling infrastructure
- Rail signalling and rolling stock electrical systems
- Shipping and marine electrical installations
- Renewable energy systems (solar PV, wind, and battery storage)
- Utilities: power distribution, water treatment, telecommunications
- Industrial plants and manufacturing sites
- Harsh environments requiring Class A short-circuit tested connectors
When performance under pressure matters, Morek components provide the dependable link that keeps critical systems online.
Universal Terminal Blocks for Copper and Aluminium
Morek’s OTL Universal Terminal Blocks are the workhorse of the range, bimetal terminal blocks engineered for both copper and aluminium conductors, with cross-sections from 1.5 mm² up to 300 mm². For engineers specifying connection systems in mining substations, rail traction supply, or shipboard switchboards, OTL terminals remove the need to stock separate copper and aluminium connectors, simplifying inventory without compromising on performance.
Each OTL terminal block is Class A certified to EN 61238-1 and EN 60947-7-1 — tested under both heat-cycle and short-circuit conditions, not just heat cycling alone. That distinction matters in fault-prone industrial networks where a Class B connector simply isn’t built to handle a real short-circuit event.
Key specifications:
- Conductor range: 1.5 mm² to 300 mm² (Cu/Al)
- Voltage rating: 1000V AC / 1500V DC
- Current capacity: up to 980A
- Class A short-circuit tested (EN 61238-1, EN 60947-7-1)
- UL 94 V-0 flame-retardant housing, IP20 protection
- DIN rail snap-on mounting, with bolt-fixing options for heavy-duty applications
- Available in 1, 3, and 5-pole configurations, plus OTL-PEN variants for TN-C to TN-S conversion.
Also available: protective plastic covers for unused connection points, contact grease for corrosion protection, and flexible busbar-compatible OTL terminals for direct copper busbar connections.
1 Pole (2 Holes) Universal Terminals OTL
1 Pole (4 Holes) Universal Terminals OTL
1 Pole (6 Holes) Universal Terminals OTL
3 Pole (6 Holes) and 5 Pole (10 Holes) Universal Terminals OTL
Universal Terminals OTL-PEN
Protective Plastic Covers for OTL Terminals
Flexible Busbar Universal Terminals OTL
Distribution Terminal Blocks
Where a single incoming conductor needs to be split into multiple outgoing circuits, Morek’s OJL Distribution Terminal Blocks handle the job, from 80A right up to 600A, with cross-sections from 6 mm² to 240 mm². They’re a common specification in switchboard design across power distribution, bulk materials handling, and industrial plant electrical rooms, where reliable downstream branching is non-negotiable.
Like the OTL range, OJL blocks are Class A certified and rated for both copper and aluminium conductors. They mount on DIN rail or solid surfaces and operate up to 80°C, with IP20 protection as standard.
Key specifications:
- Conductor range: 6 mm² to 240 mm² (Cu/Al)
- Voltage rating: 1000V AC / 1500V DC
- Current capacity: up to 600A
- Class A certified (EN 61238-1, EN 60947-7-1)
- IP20 protection, max. 80°C operating temperature
- DIN rail or solid-surface mounting
- Busbar adapters available for direct connection to copper or aluminium busbars.

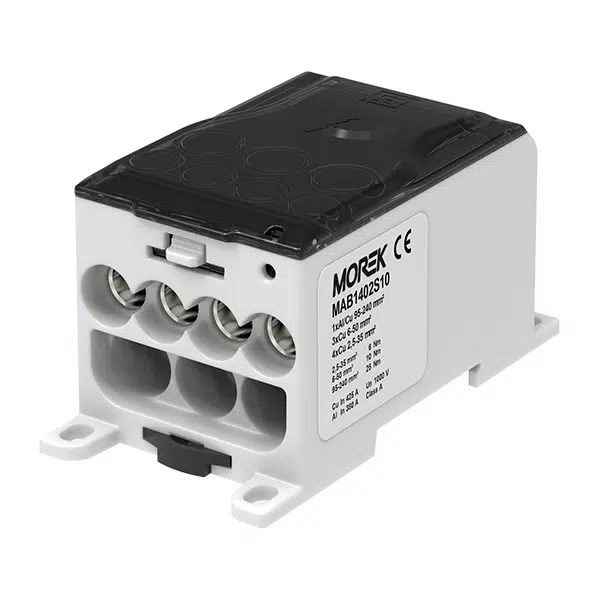

Also available: the OJL 400A range with sealable variants for tamper-evident installations, and busbar adapter kits for retrofitting OJL connectors onto existing busbar systems.
Datasheet for Download

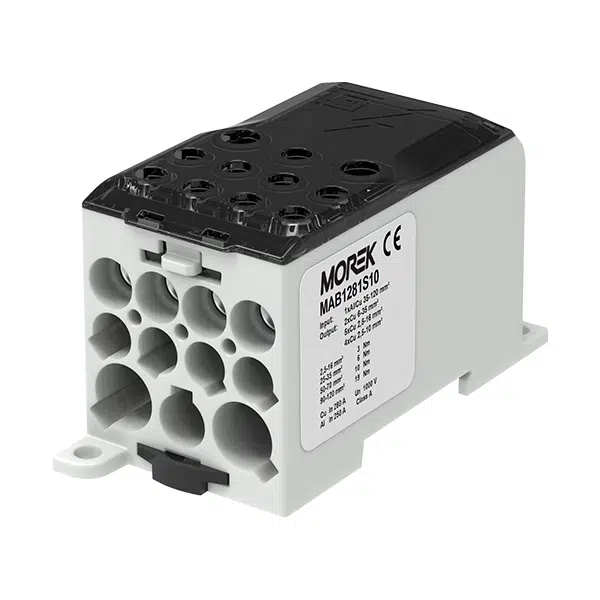

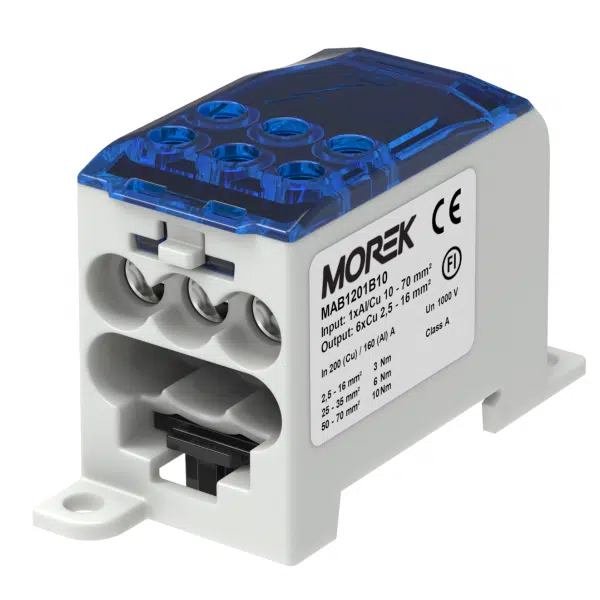

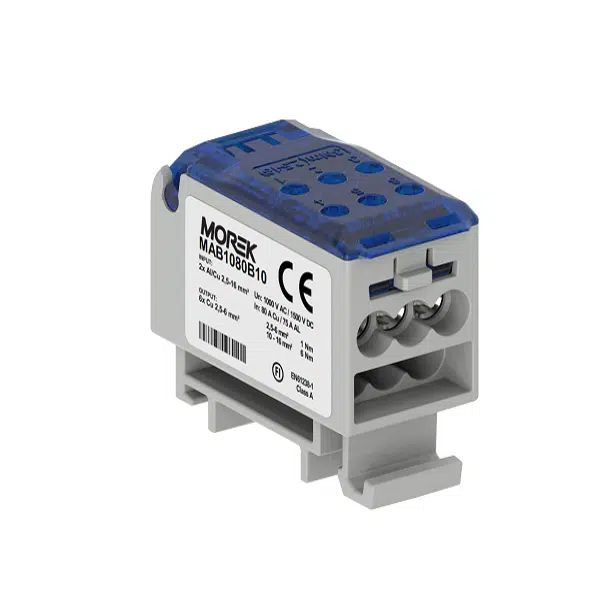

Single pole distribution blocks rated 80A, 135A, 200A, 280A, 400A
Device Connectors and Bow Terminals
Morek’s device connector range covers three distinct series, each designed for a different scale of switchgear connection — from standard DIN rail circuit breakers through to high-current moulded case circuit breakers and ACBs in mining substations and industrial MCC panels.

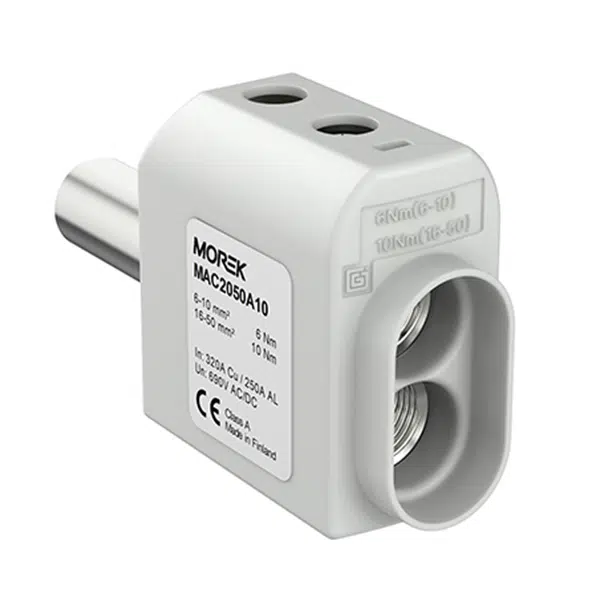

SR Series — Standard Device Connectors
The SR series connects aluminium and copper cables directly to circuit breakers, contactors, and control equipment, with a self-extinguishing polyamide cover for fire resistance and IP20 protection as standard. Especially relevant where panel space is tight and a direct device-to-cable connection is preferable to routing through an intermediate terminal block, a common requirement in compact switchrooms and rolling stock electrical cabinet designs.
- Conductor range: 6 mm² to 95 mm² (Cu/Al)
- Voltage rating: up to 690V
- Current capacity: up to 320A
- Class A certified (EN 61238-1, EN 60947-7-1)
- Self-extinguishing polyamide housing, IP20 protection

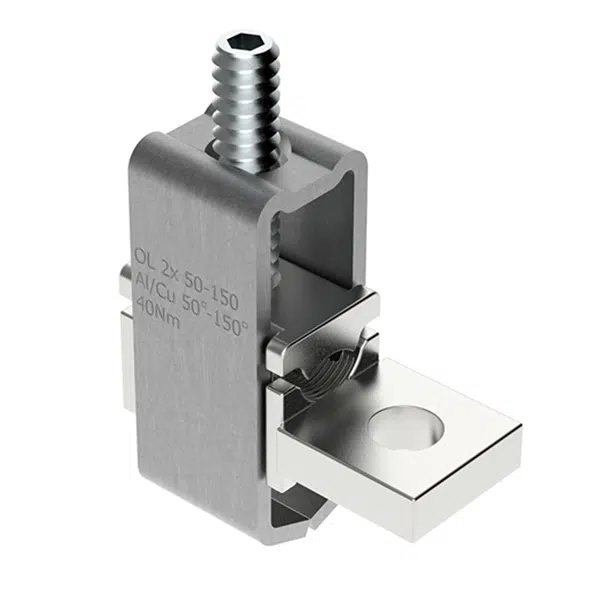

OL Series — Heavy Duty Connectors
The OL series is built for high-current applications where the SR range isn’t enough. Made from stainless steel, copper, and steel components, OL connectors handle conductors from 6 mm² up to 2 × 300 mm² and currents up to 800A — making them a practical choice for large-format MCCB connections, main incomer terminations, and heavy industrial switchgear in mining and industrial plant environments. Stranded conductors can be clamped without modification of wire ends, and installation requires no special tools.
- Conductor range: 6 mm² to 2 × 300 mm² (Cu/Al)
- Voltage rating: up to 690V
- Current capacity: up to 800A (single), up to 800A Cu / 800A Al (twin conductor)
- Stainless steel, copper, and steel construction — suited to harsh environments

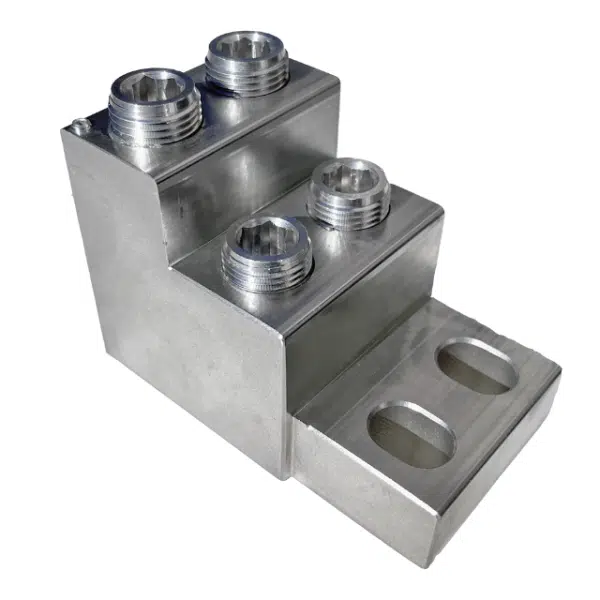

OTH Series — Universal Connectors for High-Current ACBs
The OTH series is designed for connecting copper and aluminium cables directly to large switchgear devices accepting two, three, or four conductors up to 300 mm² without cable lugs. Their compact bimetal aluminium alloy body features contact paste on clamping surfaces, oval-shaped holes for flexible cable routing, and profiled slotted holes for a firm, vibration-resistant connection.
Rated to 1000V and 1250A, OTH connectors are verified compatible with major switchgear brands including ABB, Schneider, Eaton, Siemens, Chint, and Schrack Technik.
- Conductor range: 2 × 70–300 mm² or 3 × 70–300 mm² (Cu/Al) + 1 × 1.5–4 mm² indication terminal
- Voltage rating: 1000V
- Current capacity: up to 1250A
- Bimetal aluminium alloy construction, tinned contact surfaces
- Compatible with ABB Tmax/Emax, Schneider NS/NSX, Eaton NZM, Siemens 3VA, Chint NM8N, and Schrack Technik MX series

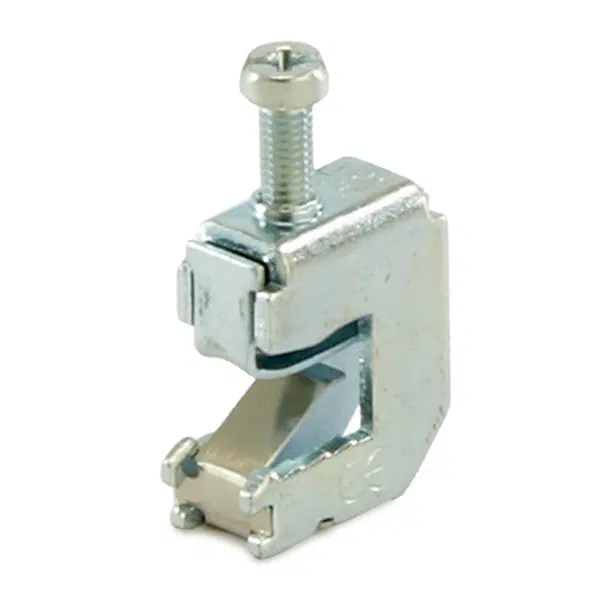

Bow Terminals MAE
Morek’s MAE Bow Terminals offer a fast, reliable screw-type connection for busbar-to-busbar or busbar-to-device links, a neater and more repeatable alternative to fabricated connections in switchboard builds. Available in both standard and bimetal configurations, they’re suited to mixed copper and aluminium installations common across mining, rail, and industrial plant switchgear.
The bimetal MAE-H variant eliminates the need for additional tin-plating when joining dissimilar metals — a common pain point in mixed copper/aluminium switchboards — while the MAE-E handles same-metal connections from 1.5 mm² up to larger cross-sections.
Key specifications:
- Conductor range: 1.5 mm² to 185 mm²
- Voltage rating: up to 1000V AC / 1500V DC
- Current capacity: up to 500A
- MAE-E: copper-to-copper or aluminium-to-aluminium connections
- MAE-H: bimetal version for mixed copper/aluminium connections without tin-plating
- Screw-type connection, suitable for DIN rail and busbar mounting
Insulated Copper Flexible Busbars — Moflex
Moflex Insulated Copper Flexible Busbars solve a problem that rigid bar can’t: connecting busbars or devices where the routing simply won’t accommodate a straight conductor. Made from highly flexible copper strip with self-extinguishing PVC insulation, Moflex busbars achieve up to 68% smaller cross-section than equivalent copper cable for the same current rating, thanks to the skin effect benefits of a flat conductor profile.
Rated from –40°C to 105°C and backed by a 5-year warranty, Moflex is increasingly specified in switchboard retrofits and tight panel layouts across mining and industrial sites where space is at a premium and installation time matters.
Key specifications:
- Voltage rating: 1000V AC / 1500V DC
- Operating temperature: –40°C to 105°C continuous
- Up to 68% smaller cross-section than equivalent copper cable
- Self-extinguishing PVC insulation, halogen-free option available
- 5-year warranty
- Available in standard and tinned copper versions
Ready-to-Use QuickBar MCB Busbars
Morek’s QuickBar MCB Busbars are prefabricated, ready-to-install busbars supplied in standard fixed lengths — eliminating the cutting, deburring, and end-cap installation required with traditional busbar-by-the-metre. For panel builders working to tight programmes, QuickBar can cut busbar installation time by up to 70%, while reducing the risk of wiring errors and panel contamination from on-site cutting.
Also available in a 1m cuttable format for installations where standard QuickBar lengths don’t match the panel layout — offering the same installation quality with the flexibility to trim on site.
Key specifications:
- Voltage rating: 1000V AC / 1500V DC
- Current capacity: up to 130A
- IP20 protection, halogen-free
- Certified to EN 60947-1 and EN 61439-1
- Compatible with major MCB brands including Schneider, ABB, Siemens, Eaton, Legrand, and Hager
- Available in standard fixed lengths (QuickBar) and 1m cuttable format
Accessories for Switchgear
Reliable earthing is non-negotiable in mining, rail, and industrial electrical installations — and Morek’s grounding range provides tested, standards-compliant solutions for both earthing strips and grounding ball studs.

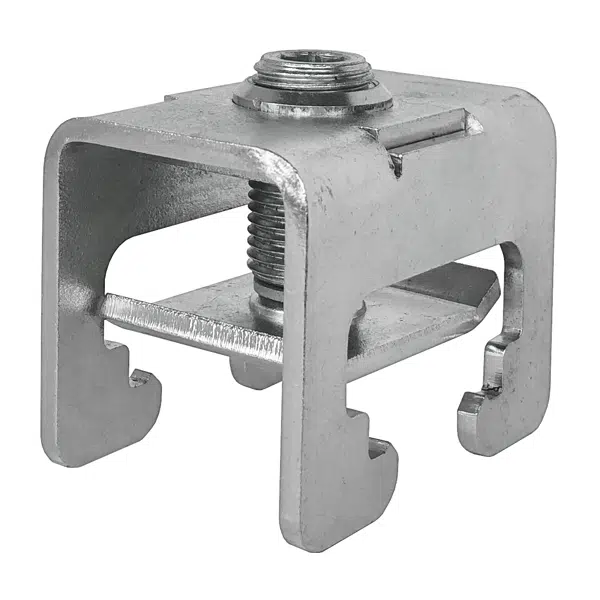

Busbar Accessories
Morek’s busbar accessories cover the components needed to complete a busbar installation, end caps, covers, insulators, and mounting hardware that are often sourced separately but are available here alongside the core busbar range.
Stocking these alongside Moflex and QuickBar busbars through Leveltec means a complete busbar bill of materials can be sourced from a single supplier, reducing procurement complexity on mining, rail, and industrial projects where programme pressure is constant.
Key specifications:
- End caps and insulating covers for exposed busbar terminations
- Mounting clips and DIN rail adapters for busbar installation
- Compatible with the full Moflex flexible busbar range and QuickBar MCB busbar systems
- UL 94 V-0 flame-retardant.
Grounding Products
Reliable earthing is non-negotiable in mining, rail, and industrial electrical installations — and Morek’s grounding range provides tested, standards-compliant solutions for both earthing strips and grounding ball studs.
Key specifications:
- Earthing strips: galvanized steel or stainless steel AISI 304, tested to IEC/EN 61230
- Grounding ball studs: suitable for panel and equipment enclosure earthing
- DIN rail mountable (earthing strips)
- Suitable for harsh industrial, marine, and transport environments.
Earthing strips provide DIN rail-mountable earth distribution for switchboards and control panels, available in galvanized steel and stainless steel AISI 304 for corrosive or marine environments. Tested to IEC/EN 61230.
Grounding ball studs provide a secure, vibration-resistant earth connection point for equipment enclosures and panels, particularly relevant in rail rolling stock and mining equipment where mechanical vibration is a constant consideration.
Stud insulators provide fixed, high-resistance mounting points for busbars and conductors, with flashover ratings suitable for MV and LV applications.
Spacing insulators maintain the correct clearance between busbar sections and conductor arrays, critical for both insulation coordination and mechanical stability in high-vibration environments such as mining and rail.
Metal spacers provide rigid structural spacing in switchgear assemblies and panel builds where electrical isolation is not required but accurate dimensional control is.
Insulators and Metal Spacers
Morek’s insulator and spacer range provides the high-resistance separation and physical spacing needed in busbar systems, switchgear assemblies, and electrical enclosures. Available in both polyester and polyamide, with metal spacers for structural applications.
Key specifications:
- Polyester insulators: UL94 V-0, up to 30kV flashover
- Polyamide insulators: UL94 V-0, up to 50kV flashover
- Metal spacers: galvanized steel construction
- Suitable for LV and MV switchgear applications
Shear Bolt Cable Lugs and Connectors
Morek’s shear bolt cable connectors and cable lugs provide a tool-free, torque-controlled cable connection solution, particularly well suited to site installations where controlled termination is required without specialist tooling.
Key specifications:
- Tested up to 36kV
- Suitable for copper and aluminium conductors
- Torque-controlled installation via shear bolt head — no specialist tooling required
- Suitable for mining cable terminations, HV/MV cable jointing, and switchgear connections
Shear bolt cable connectors join two cables together with the shear bolt head snapping off at the correct torque, eliminating the risk of under- or over-tightening, and leaving a flush, safe termination. Suitable for both copper and aluminium conductors.
Shear bolt cable lugs terminate a single cable at a connection point to a busbar, terminal, or equipment lug, using the same torque-controlled shear bolt system for consistent, reliable results on site.
Why Leveltec Supplies Morek
One Supplier for Copper & Aluminium, Across the Whole Panel
From terminal blocks to busbars to cabinet hardware, the Morek range lets engineers specify a complete switchboard connection system — copper or aluminium — from a single, locally stocked supplier.
Wide Range of Applications
Class A short-circuit testing, IP66/IP68-rated sealing components, and wide operating temperature ranges mean Morek components are built for the vibration, dust, moisture, and fault conditions found in heavy industrial and transport environments — not just light commercial panels.
Proven & Certified Reliability
Class A short-circuit tested, CE-marked, and compliant with EN 60947-7-1, EN 61238-1 standards across the range. Every product line is validated for safety and performance in demanding electrical networks.
Built for Safety in the Field
UL 94 V-0 flame-retardant housings, IP20 to IP68 protection ratings depending on product, and halogen-free options across busbars and cable glands — protecting both people and equipment.
Global Reputation, Local Support
Morek’s components are manufactured and distributed across Europe, and trusted by engineers for compliance with international standards. Through Leveltec, Australian and New Zealand projects get the same reliability, backed by local stock and engineering support.
Frequently Asked Questions
Yes. The OTL universal terminal blocks, OJL distribution blocks, SR device connectors, and MAE bow terminals are all rated for both copper and aluminium conductors, reducing complexity and simplifying inventory across a panel build.
Morek’s terminal and distribution block ranges are Class A certified to EN 61238-1, meaning they’re tested under both heat-cycle and short-circuit conditions — not heat cycling alone. This is the standard required for reliable performance in demanding electrical networks like mining, rail, and shipping installations.
Yes. The range is tested and certified to EN 60947-7-1, EN 61238-1, EN 61439-1, and EN 60947-1, with CE marking and Class A designation where applicable.
QuickBar busbars are supplied prefabricated in standard lengths for fast, error-free installation, while 1m cuttable busbars offer the same performance in a length that can be trimmed on site — useful where panel layouts don’t match standard QuickBar dimensions.
Yes. Moflex busbars achieve up to 68% smaller cross-section than equivalent copper cable for the same current rating, making them well suited to switchboard retrofits and space-constrained panel designs. The tinned copper variant is also available for marine and high-humidity environments.
Shear bolt connectors are tightened until the bolt head shears off at the correct torque — no specialist tooling is required. This makes them well suited to site cable terminations in mining and industrial environments where consistent, controlled connections are needed without a hydraulic crimping tool.
Most products are designed for DIN rail mounting with snap-on installation for standard use, with bolt-fixing options available for heavy-duty or high-vibration applications.
Yes. Leveltec holds local stock of the Morek range across Australia and New Zealand, with engineering advice and site-ready support available for project specification.
